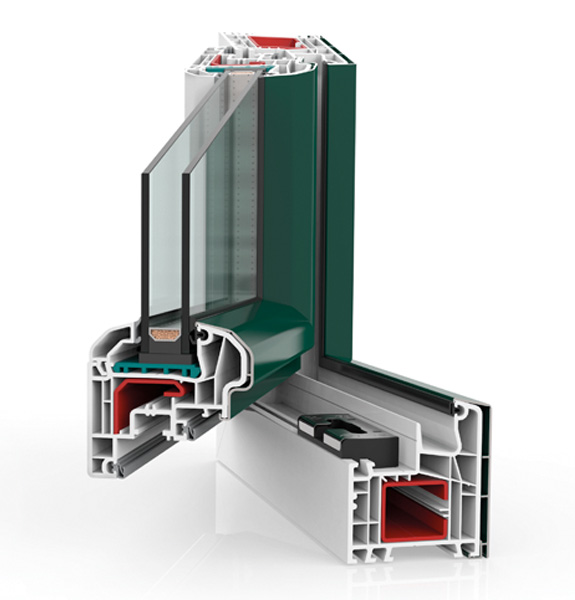

CLASIC Alu


TECHNICAL PROPERTIES/STANDARD:

Profile soft line,
installation depth; 75 mm,
ALU cover profile installed on the exterior of the casement and frame
Thermal transmittance of the profile: Uf = 1.2 W/m2 K
Profile reinforcement: steel – galvanised
Profile colour interior: white, exterior: powder coated aluminium cover profile according to the RAL colour chart
Seals three permanently-elastic grey or black seals
(on the exterior of the window black only)
Hardware activPilot with multipoint safety locking system and basic burglar resistance with two safety locking
elements, level guard (that prevents the window
handle from rotating to the wrong position)
and a casement-unloading lifting device.
Glass double-glazing, 4 – 16 Ar – 4 (4 mm pane
of glass, 16 mm cavity, 4 mm pane of glass)
with ALU spacer, Ug = 1.1 W/m2 K
Total thermal transmittance of the window Uw = 1.3 W/m2 K
Weighted sound reduction of the window Rw = 33 dB

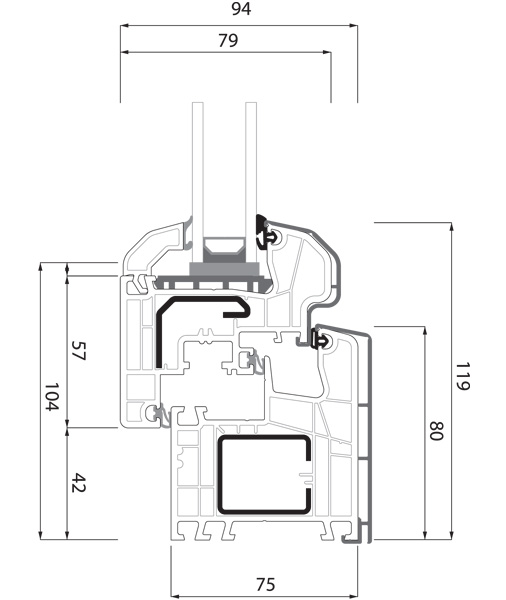

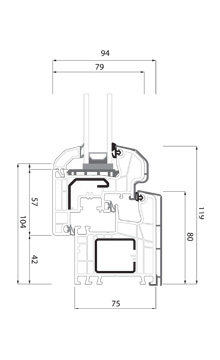

Frame depth 75 mm
Total window depth 94 mm


ADDITIONAL/ABOVE-STANDARD OPTIONS

Colour interior: colour finish, exterior: powder coated aluminium cover profile according to the RAL colour chart
Closed window ventilation system REGEL – Air or Basic Air Plus
Hardware
  • multi-stepped gap ventilation,
  • RC1 N and RC2 N resistance class hardware ,
  • highly energy efficient micro-ventilation
  • of the room with parallel action hardware –
  • activPilot Comfort,
  • concealed hardware – activPilot Select
Glass
  • double-glazing, Ug = 1.1 W/m2 K
  • with a PVC spacer = Uw = 1.2 W/m2 K,
  • triple-glazing also available,
  • soundproof glass,
  • safety glass.
Total glass depth max. 41 mm
Optional sliding windows
Optimum Uw value = 0.96 W/m2 K



COLOUR CHART - PVC

05.
Mahogany
23.
Golden Oak
27.
Hazelnut
79.
alux DB 703
55.
Mountain Pine
55.
Pine Mountain
60.
Anthracite Grey
61.
Grey
62.
Basalt Grey
30.
Dark Green
06.
Bog Oak

Only the basic colours of the colour chart are listed above. For further enquiries, please contact the manufacturer.
