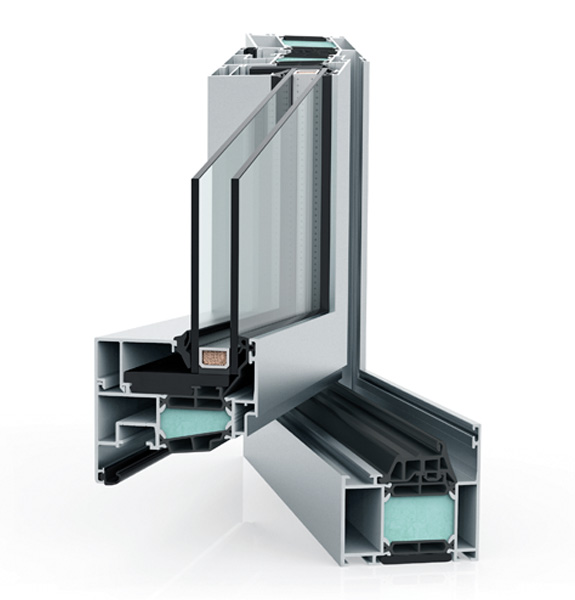

ALULINE W72

The most energy-efficient ALU window!

TECHNICAL PROPERTIES/STANDARD:

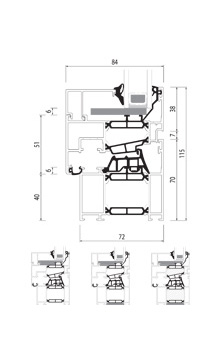

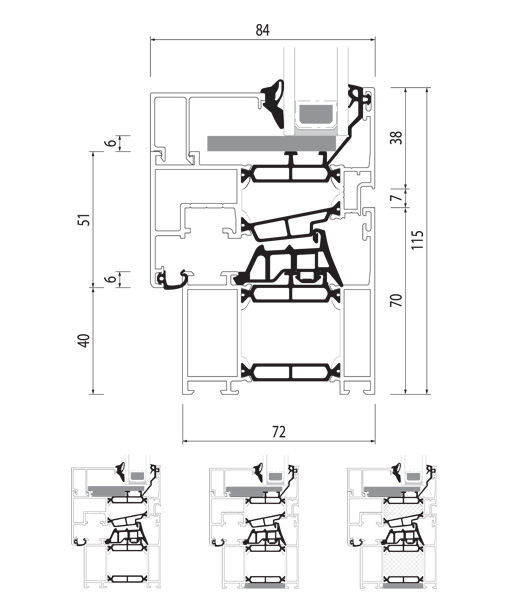

Profile:  modern flat line, installation depth: 72 mm
Thermal transmittance of the sash: Uf = 2.2 W/m2 K
Thermal bridge
Profile colour:  according to the RAL colour chart (powder coating), anodised
Seals:  two permanently-elastic black seals
Hardware:  activPilot with multipoint safety locking system and basic burglar resistance with two safety locking elements, level guard (that prevents the window handle from rotating to the wrong position) and a casement-unloading lifting device.
Glass:  double-glazing, 4 – 16 Ar – 4 (4 mm pane of glass, 16 mm cavity, 4 mm pane of glass)
with ALU spacing, Ug = 1.1 W/m2 K
Total thermal transmittance of the window:  Uw = 1.6 W/m2 K
Weighted sound reduction index of the window:  Rw = 33 dB
Frame depth:  72 mm
Total window depth:  84 mm

ADDITIONAL/ABOVE-STANDARD OPTIONS:

Profile: Uf = 1.9 W/m2 K,
double-glazing, Ug = 1.1 W/m2 K with an ALU spacer, Uw = 1.5 W/m2 K,
triple-glazing, Ug = 0.5 W/m2 K, with a thermal PVC spacer, Uw = 1.05 W/m2 K,
Uf = 1.7 W/m2 K,
double-glazing, Ug = 1.1 W/m2 K with an ALU spacer, Uw = 1.4 W/m2 K,
triple-glazing, Ug = 0.5 W/m2 K with a thermal PVC spacer, Uw = 0.99 W/m2 K,
Uf = 1.4 W/m2 K,
double-glazing, Ug = 1.1 W/m2 K with an ALU spacer, Uw = 1.3 W/m2 K,
triple-glazing, Ug = 0.5 W/m2 K with a thermal PVC spacer, Uw = 0.89 W/m2 K.
Colour: timber imitations
Hardware:  multi-stepped gap ventilation, RC1 N and RC2 N resistance class hardware, highly energy efficient micro-ventilation of the room with parallel action hardware – activPilot Comfort, concealed hardware – activePilot Select
Glass:
  • Ug = 0.5 W/m2 K with a thermal PVC spacer = Uw = 1.15 W/m2 K,
  • soundproof glass,
  • safety glass.
Total glass depth:  max. 64 mm
Optional sliding windows
Optimum Uw value = 0.89 W/m2 K

COLOURS  - ALU

9016  8017
 8011
 8001 7001
 7016
 6005
 3004

Please note those are just basic colours. Please contract us for more information.
