SLIDING DOORS
SIMPLE HANDLING THAT DOES NOT TAKE UP ANY ADDITIONAL SPACE WHEN OPENING THE DOOR.
Large glass surfaces facilitated by SATLER sliding door systems fill your home with light and open up an exceptional view of nature!
You can choose between tilt-sliding or lift-sliding doors. Sliding doors are manufactured from either PVC or ALU. Both opening designs can include an exterior ALU cover profile.
Sliding doors with a large glass surface have been specifically designed as points from which you move to your terrace, balcony or garden. Parallel opening of the leaf with a fixed light panel saves space!
LIFT-SLIDING DOORS
The leaf is initially slightly lifted and then slides along the cradles past the fixed part of the door. When closed, the sliding leaf and fixed part of the door are not located on the same cradles and the same line.
You can choose between two designs:
BASIC and PREMIUM
|
|
LIFT-SLIDING DOOR
IDEAL BASIC |
LIFT-SLIDING DOOR
IDEAL PREMIUM |
| Threshold |
ALU with an interior PVC profile
|
Glass fibre (GFK), filled with foam |
| Upper cradle |
ALU |
Glass fibre (GFK) |
Frame
|
Steel reinforcement |
ALU reinforcement with a thermal bridge |
| Leaf |
ALU and steel reinforcement
|
ALU and steel reinforcement |
| Uf - value (W/m2 K) |
1,5 |
1,1 |
 PDF flyer (in slovene) |
PREMIUM System – the ideal solution for passive construction projects!
A low-threshold design that smoothly facilitates moving to the exterior without any obstacles is also possible.
The new lift-sliding door system also facilitates a maximum dimension design: 6,50 m x 2,80 m.

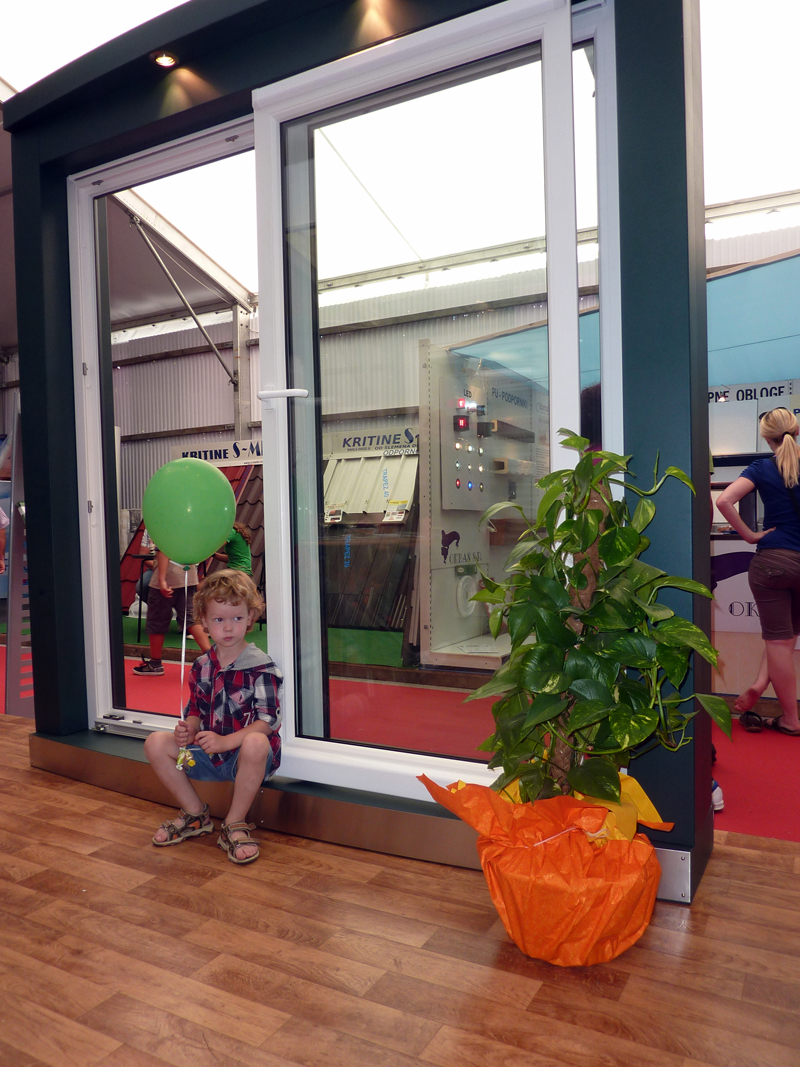

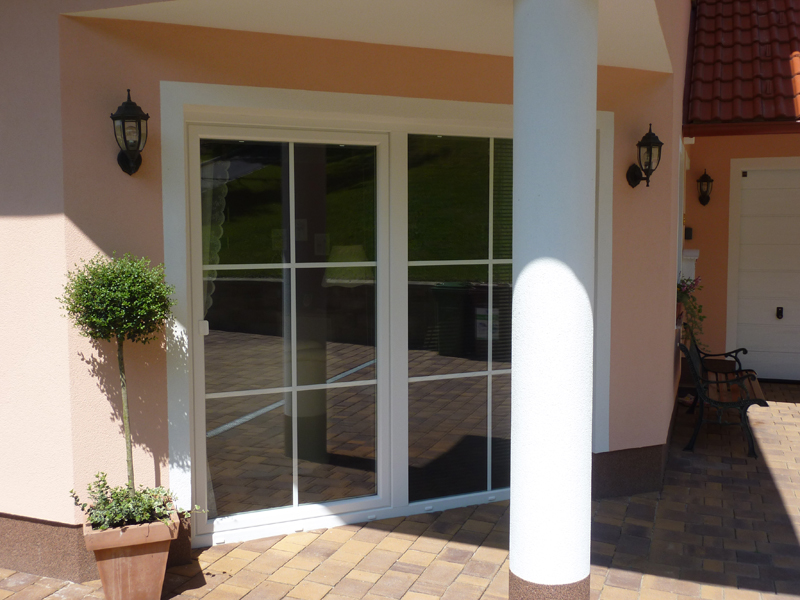

TILT-SLIDING DOORS
The leaf is opened by tilting and then slides along the cradles past the fixed part of the door.
